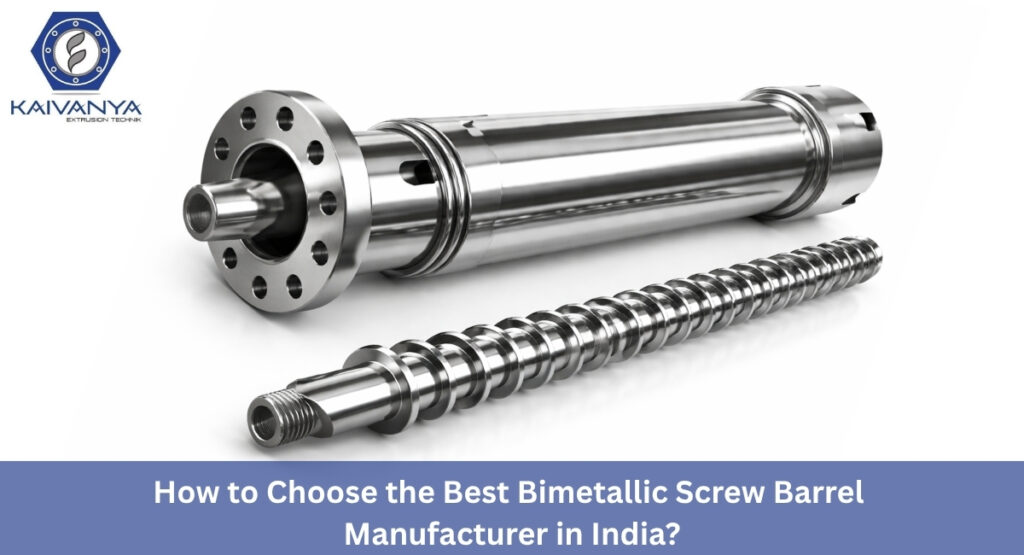

Choosing the best Bimetallic Screw Barrel Manufacturer in India is not simply about finding the hardest alloy or lowest price. A bimetallic screw barrel combines a strong base component with wear- or corrosion-resistant protection where plastic contacts the surface. It conveys, melts, mixes, and pressurizes polymers in extrusion and injection molding equipment. Plastics processors, recyclers, compounders, machine rebuilders, and maintenance teams need it when standard surfaces wear too quickly. The right manufacturer matters because metallurgy, screw geometry, machining accuracy, clearance, and machine compatibility together determine whether the replacement supports stable production.
What Is a Bimetallic Screw Barrel and How Does It Work?
A bimetallic assembly uses two material systems for different jobs. The screw has a load-bearing steel core, while selected flights or mixing areas can receive hardfacing. The barrel uses a structural steel body with a protected internal bore or alloy inlay. During operation, screw rotation conveys resin while heat, compression, and shear create a uniform melt for a specific machine. Injection screws also reciprocate to prepare and inject each shot. Available variants include extrusion, injection molding, barrier, mixing, vented, recycling, single-screw, and twin-screw designs. Buyers should compare the base material, alloy family, protected area, bonding method, heat treatment, dimensional accuracy, and inspection evidence instead of relying on the “bimetallic” label alone.
Which Bimetallic Screw Barrel Materials and Features Should You Compare?
Important features begin with application-matched metallurgy. Kaivanya lists base-material options such as 38CrMoAlA, SACM645, EN41B, 42CrMo, 34CrAlNi7, H13, and SKD61, plus nickel-, cobalt-, and tungsten-carbide-based protection for reviewed applications. Design choices can include general-purpose profiles, barrier flights, mixing sections, venting, protected tips, and custom wear zones. Diameter, working length, L/D ratio, compression profile, drive connection, rotation, barrel bore, feed opening, heater layout, thermocouple ports, cooling arrangement, nozzle, and flange must match the machine. Temperature, pressure, speed, torque, alloy thickness, and hardness are not universal values; each must be confirmed in the approved specification and inspection plan before production work begins.
What Benefits Should a Quality Screw Barrel Deliver?
Correct material selection places wear or corrosion protection where the process needs it, helping critical surfaces retain useful geometry. A named steel and alloy system provides proof for comparing supplier offers. Precision-machined pitch, flight diameter, barrel bore, straightness, and concentricity support controlled screw-to-barrel clearance, which helps maintain melt preparation and output consistency across repeated production. OEM-matched splines, mounting points, ports, and discharge connections simplify installation on existing equipment. Documented drawings and inspection results also give maintenance teams a baseline for future wear checks. These benefits can reduce avoidable disruption, but service life still depends on resin composition, filler loading, alignment, cleaning, machine settings, operating temperature, and production demands.
Which Industries Use Bimetallic Screw Barrels?
Bimetallic screw barrels are used where abrasive fillers, corrosive ingredients, or long production runs challenge ordinary surfaces. Pipe, profile, sheet, film, cable, and recycling extruders need stable conveying and melt delivery. Masterbatch and compounding lines process concentrated pigments, calcium carbonate, talc, glass fibre, flame retardants, and reinforced polymers that can increase wear. Injection molders use matched screw and barrel sets for automotive parts, electrical components, packaging, appliances, housewares, furniture parts, and industrial products. Blow molding lines produce bottles, containers, drums, and tanks. Food-contact, medical, fluoropolymer, and chemically sensitive applications require separate confirmation of material composition, cleanability, process compatibility, and applicable regulatory requirements before final technical approval.
Specifications
| Technical Parameter | Available or Required Specification |
|---|---|
| Product Configuration | Bimetallic screw, bimetallic barrel, or matched screw-and-barrel set |
| Machine Compatibility | Injection molding, extrusion, blow molding, recycling, compounding, single-screw, or twin-screw machinery |
| Published Base Materials | 38CrMoAlA, SACM645, EN41B, 42CrMo, 34CrAlNi7, H13, and SKD61 |
| Wear-Protection Options | Nickel-based, cobalt-based, boron-containing, tungsten-carbide, or other application-selected alloy systems |
| Barrel Construction | Structural steel body with an alloy-protected internal bore or spin-cast inlay |
| Screw Construction | Load-bearing alloy-steel core with protected flights, tip, mixing section, or identified wear zones |
| Published Inlay Option | Certain injection-barrel configurations list a 1.5–2.0 mm inlay layer; confirm applicability in the quotation |
| Published Tungsten Option | One injection-barrel configuration lists 10–35% tungsten; the final composition must be confirmed for each order |
| Heat-Treatment Options | Gas nitriding, plasma nitriding, vacuum hardening, hardfacing, or a process selected for the approved material system |
| Screw Diameter | Custom-made according to the machine drawing, measured sample, and approved barrel bore |
| Overall and Working Length | Machine-specific; state both dimensions on the approval drawing |
| L/D Ratio | Selected according to machine design, polymer, residence time, and processing requirement |
| Screw Geometry | General-purpose, barrier, mixing, vented, recycling, injection, or application-specific profile |
| Compression Ratio | Selected according to the polymer and plasticizing requirement |
| Screw Pitch and Flight Depth | Defined on the approved manufacturing drawing |
| Screw-to-Barrel Clearance | Set according to diameter, resin viscosity, alloy system, and operating temperature |
| Rotation and Actuation | Continuous rotation for extrusion; rotation and reciprocation for injection molding; confirm direction |
| Drive-End Connection | Spline, keyway, thread, coupling, or OEM-specific interface |
| Discharge Connection | Nozzle, flange, breaker-plate, adapter, or die-end connection |
| Barrel Accessories | Feed opening, heater locations, thermocouple ports, sensors, cooling passages, and mounting points |
| Operating Temperature | Polymer- and machine-specific; verify against approved resin and machine data |
| Maximum Operating Pressure | Confirm maximum melt or injection pressure; a universal pressure class does not apply |
| Screw Speed and Torque | Must remain within motor, gearbox, shaft, and machine-manufacturer limits |
| Surface Finish | Defined according to the drawing, polymer, and inspection plan |
| Dimensional Control | Screw diameter, barrel bore, straightness, runout, concentricity, lengths, and critical interfaces |
| Quality Documents | Approved drawing, material certificate, hardness report where specified, and dimensional inspection report |
| Customization Options | Alloy selection, revised flight geometry, mixing elements, venting, protected tips, port changes, and reverse engineering |
| Repair Options | Screw rebuilding, worn-flight restoration, barrel inspection, and barrel refurbishment subject to condition |
Why Consider Kaivanya Extrusion Technik?
Kaivanya Extrusion Technik states that it has manufactured bimetallic screw and barrel products since 1998 from Vatva, Ahmedabad. Its published range covers extrusion, injection molding, blow molding, single-screw and twin-screw components, plus retrofit spares. The company also lists OEM replacement, screw rebuilding, barrel refurbishment with inspection, drawing services, installation, and extrusion-line projects. Its website identifies multiple alloy-steel grades and nickel-, cobalt-, and carbide-based wear options, selected according to the application. Buyers should still request the final drawing, material records, hardness results where specified, dimensional report, realistic delivery commitment, and written technical scope for every order.
Request a Custom Bimetallic Screw Barrel Quote
Ready to compare materials and designs for your machine? Send Kaivanya Extrusion Technik your drawing or sample, machine model, resin, fillers, operating conditions, and current wear issue. Request a detailed quote, review the technical scope, and confirm compatibility before ordering. Talk to a screw barrel specialist or enquire now to begin your project.
