What is a plastic injection molding​ Screw Barrel?
An injection molding screw barrel is a precision-engineered plasticizing component that melts, mixes, conveys, and prepares plastic material for injection into a mold. The screw rotates and reciprocates inside the heated barrel to deliver a consistent melt under controlled processing conditions. A properly matched screw and barrel can improve shot consistency, melt quality, production stability, and component service life. It is widely required by plastic processors, injection molding machine manufacturers, machine rebuilders, maintenance teams, and replacement-part buyers looking to restore or improve the performance of their plastic injection molding machine.
Injection Screw Barrel Product Overview

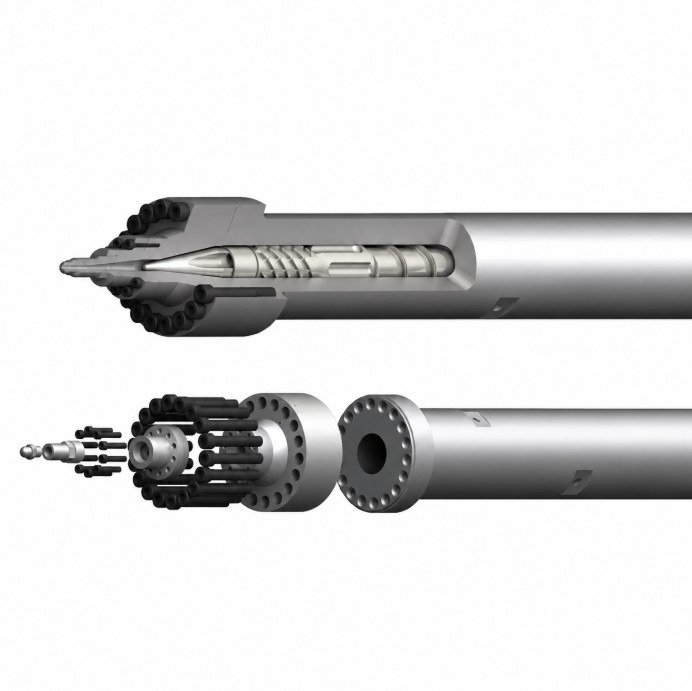

The injection molding screw barrel consists of a specially designed screw operating inside a precision-machined heated barrel. During operation, plastic granules enter through the feed section and move through the screw’s feeding, compression, and metering zones. Heat, shear, and compression gradually transform the material into a homogeneous melt before injection.
Depending on the application, customers can source a screw, barrel, or matched screw and barrel set. Components can be manufactured according to an approved drawing, machine model, physical sample, screw dimensions, polymer type, filler content, and processing requirements. Proper matching is especially important for electric, hydraulic, compact, and specialized injection molding equipment.
Key Features of Injection Molding Screw Barrel
A quality injection molding screw barrel should be designed around the material being processed, machine configuration, and expected production conditions. Depending on the application, suitable construction materials and surface treatments can be selected to handle abrasive fillers, recycled materials, corrosive polymers, and demanding production environments.
Precision-machined screw flights and barrel bores help maintain the required working clearance for consistent plasticizing. Screw geometry can be developed with appropriate feeding, compression, mixing, and metering characteristics. Diameter, overall length, L/D ratio, feed opening, heating-zone arrangement, nozzle connection, and drive-end dimensions can be customized according to approved machine data. Wear-resistant, nitrided, or bimetallic construction may also be considered where application conditions require enhanced wear protection.
Benefits of a Precision Screw and Barrel
Choosing the correct injection molding screw and barrel can have a direct impact on molding consistency and production efficiency. A properly designed assembly promotes stable feeding and plasticizing, helping create a more uniform melt for repeatable shot delivery.
Correct internal clearance can reduce unwanted material backflow and support consistent shot weight and molding performance. Suitable materials and surface treatments can help control wear, potentially extending component service life and reducing unexpected maintenance.
For machine owners, replacing worn components rather than an entire injection molding machine can be a practical way to restore performance. A properly matched replacement also supports easier installation and reduces compatibility problems caused by incorrect dimensions, materials, or connections.
Applications & Industries
Injection molding screw barrels are used across a wide range of plastic processing applications where reliable melting, mixing, and injection are essential. Packaging manufacturers may use them for caps, closures, containers, and other molded products, while automotive and electrical manufacturers require consistent plasticizing for technical components and fittings.
They are also suitable for household products, consumer goods, toys, industrial components, electronics, and engineering-plastic applications when the screw profile and material construction are selected correctly. Specialized applications, including medical injection molding, require additional attention to material documentation, surface condition, process compatibility, and applicable quality requirements.
For compact or prototype equipment, appropriately sized assemblies can support development and short production runs. For high-volume production, larger screw and barrel configurations can be engineered according to machine capacity and processing requirements.
Specifications & Technical Details
| Parameter | Available Supply / Specification Basis |
|---|---|
| Product configuration | Screw only, barrel only, or matched screw-and-barrel set |
| Machine compatibility | OEM drawing, machine model, serial data, or physical sample |
| Screw diameter | Manufactured according to approved machine/component dimensions |
| L/D ratio | Selected according to machine and processing requirements |
| Screw profile | Feeding, compression, mixing, metering, and application-specific profiles |
| Construction | Application-specific construction with wear-resistant options where required |
| Material & treatment | Selected according to resin, fillers, corrosion, and operating conditions |
| Heating provisions | Heater zones, thermocouple holes, and feed-throat details as specified |
| Connections | Drive end, nozzle connection, feed opening, and mounting dimensions |
| Inspection | Dimensional, material, hardness, or treatment reports where included in the order |
| Customization | Dimensions and configuration can be produced according to approved technical data |
Why Choose the Right Screw Barrel Manufacturer?
Selecting the right screw barrel manufacturer is about more than matching basic dimensions. An experienced supplier should understand the relationship between machine configuration, polymer type, filler content, operating conditions, screw geometry, and wear requirements.
Before ordering, buyers should verify manufacturing capability, dimensional inspection, material selection, heat-treatment control, drawing approval, quality documentation, packaging, delivery support, and technical assistance. A properly engineered replacement can provide better long-term value than choosing solely on the lowest purchase price.
Request a Quote for Injection Molding Screw Barrel
Looking for a replacement injection molding screw barrel for your machine? Share your machine model, drawing, component photographs, dimensions, resin details, and production requirements. Get the right screw, barrel, or matched set based on your application and machine configuration.
Request a quote today to discuss compatibility, available construction options, lead time, and pricing.
